Approximately 70% of household leaks are due to poor joints. This points out the significance of quality connections, alongside the tubing choice.
Click Here To View 3/4 Compression Union

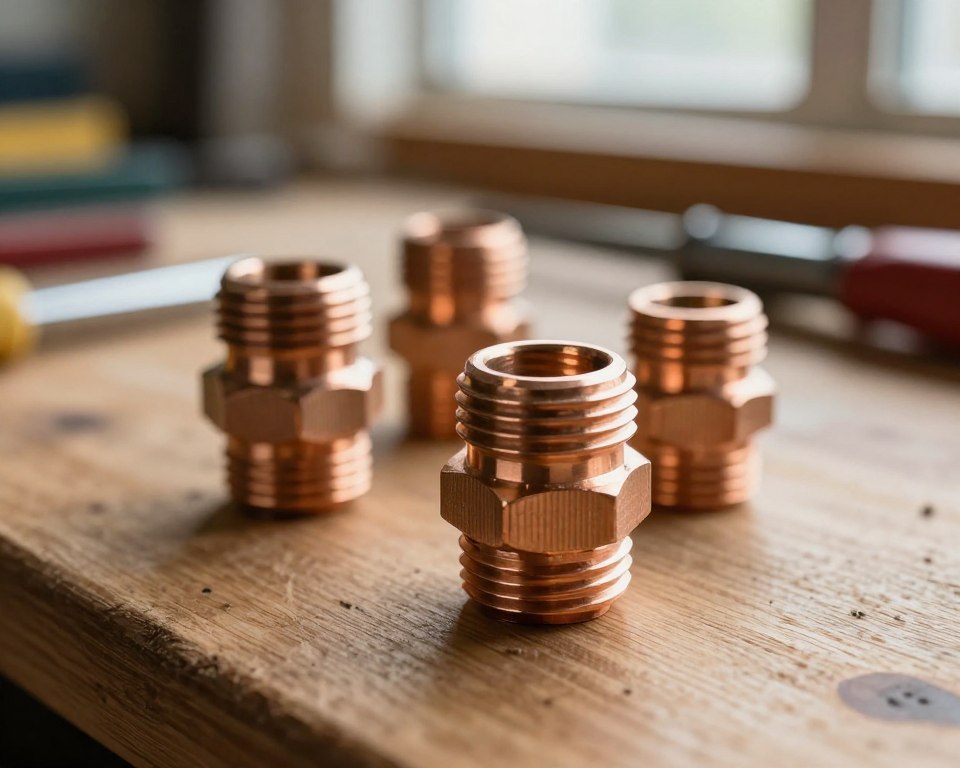

For installers and hobbyists, a dependable 3/4 inch compression fitting is indispensable. These fittings guarantee tight, leak-proof joints when applied to the right copper tubing types.
Types M, L, and K copper are widely available, complying with ASTM and NSF standards for different uses. A 3/4 copper compression union, when properly matched, provides extended life and protection against corrosion. It also helps meet code with regulations for new builds and maintenance.
Installation Parts Supply offers superior 3/4″ fitting parts and matching tubing. This grants builders and residents availability of reliable parts that meet industry standards for quality and durability.
Reasons To Use Top-Tier 3/4 Compression Fittings For Pipes And HVAC
High-quality 3/4″ fittings guarantee secure seals no torch needed. Tradespeople favor them for their role in allowing rapid joins, fixes, and retrofit work. Such parts give technicians a robust connection that withstands the demands of the field.
Copper fitting durability and rust resistance
Copper’s natural resistance to oxidation and its capacity to endure extreme temps make it ideal for various applications. It is good for drinking water, HVAC refrigerant lines, solar heating, and certain fuel pipes. High-end fittings, especially, resist weathering, maintaining seal integrity over years of use.
Compatibility with common copper tube types
For a tight seal, the fittings must fit the tubing size and thickness. M, L, K types cater to most needs: Grade L is good for residential and commercial water systems, Type M for lighter residential runs, and Grade K for underground or heavy-duty applications. Always check the tubing size when buying a 3/4 compression nut or union to ensure compatibility.
Uses in home and business systems
Such fittings are adaptable and suitable for a many different tasks. They are commonly used on drinking water pipes, branches, and service distribution. In heating and cooling, they provide safe function by matching AC copper and compatible fittings. For non-soldered joins in service calls, a 3/4 compression union or a 3/4″ brass coupler provides easy entry for upkeep.
| Feature | Value | Typical Use |
|---|---|---|
| Rust resistance | Long service life in wet and exposed conditions | Water, solar, HVAC |
| Works with standard copper | Good seal if OD matches | Residential and commercial plumbing |
| Easy installation | Quick fixes, less waiting | Field service, retrofits, emergency fixes |
| Material choices | Choices for different needs | Brass for general, Copper for rust protection |
3/4 Copper Compression Fitting: Features, Parts, And Materials
Knowing the parts and materials is crucial to selecting the right 3/4″ fitting. They create a tight seal no solder required. They are suitable for a wide range of pressures and temperatures.
Anatomy Of A Compression Fitting
Key parts are the fitting body, a compression ring or ferrule, and the nut. Screwing the nut it pushes the ferrule into the body. This action seals the pipe, stopping leaks.
Premium sets often come with an O-ring made from Buna or EPDM. Some packages also include a extra seal, easing service. These bonuses are frequent in premium parts for liquid cooling and HVAC systems.
Material Choices And Finishes
Standard materials include pure copper, brass, and nickel-plated brass. Pure copper fittings are best for copper pipes and preventing electrolysis. Brass fittings are standard for potable water and HVAC systems.
Nickel-plated brass gives enhanced rust protection and a shiny appearance. Custom caps can be coated or finished for color and protection. Verify chemical safety prior to selecting colored finishes for glycol loops or fluid lines.
Typical Shapes And Key Terms
Typical styles include unions, couplings, tees, adapters. You’ll find them labeled as 3/4 compression unions, couplers, or tees for branching lines.
When choosing components, ensure the 3/4 compression nut matches. A 3/4″ brass coupler is a durable option when brass is preferred. Review the performance specs, such as PSI and temp limits, and if spares come with it.
Here is a comparison to guide selection.
| Type | Metal | Usage | Notes |
|---|---|---|---|
| Union | Copper/Brass | Joining two copper tubes | Good for repairs and modular systems |
| 3/4 compression coupler | Brass/Plated | Straight coupling of same-diameter tubes | Often sold with ferrules and nuts included |
| Brass Coupler | Brass | Water & HVAC | Corrosion resistant |
| Compression tee | Brass or nickel-plated | Splitting lines | Check pressure rating for multi-branch systems |
| Straight adapter | Brass, copper, or plated | Fitting to valve | Check threads/seat |
Use this table to match a nut and ring to the correct body. Proper matching prevents leaks and speeds up installation. Ensure you have extra parts ready for field repairs.
How To Install And Fix 3/4 Compression Fittings
Make sure the tubing and fitting match the connector. Confirm the copper tubing is the right grade (M, L, K, ACR) and measures 3/4-inch outside diameter. Check for standard stamps if needed. Choose brass or copper fittings that suit the pipe material to avoid galvanic corrosion.
Preparation of the tube are vital steps. Use a pipe cutter for a straight cut. Remove inner burrs and remove sharp outside burrs for proper ring fit. Slide the compression nut and ferrule onto the tube prior to insertion into the fitting body.
Tubing prep and fitting selection
Decide on the fitting type for your joint. A union connects ends, whereas a 3/4 compression coupler links straight pipes. A 3/4 fitting may include special ferrules or O-rings for specific uses. Opt for premium parts in high-pressure systems or cooling jobs.
How-to install steps
Screw by hand the compression nut until tube hits the stop inside the fitting. Use a wrench to turn the nut as specified in instructions. Some premium fittings include a Buna O-ring and require little more than hand tightening; always follow the product instructions.
For ferrule fittings, tighten to compress and grips the tubing. If there is an O-ring, inspect its seating before final torque and have a spare available for field repairs. For critical or buried lines, pressure-test the assembly at design pressure and look for drips.
Leak causes and solutions
Leaks often stem from a crooked cut, missing or damaged ferrules, poorly seated pipe, or bad torque. Over-tightening can crush rings and under-tightening leaves the joint loose. Swap out bad parts and cut the pipe straight if necessary.
Recurring drips could suggest the fitting is bad or a permanent join such as solder is more appropriate. Keep spare 3/4 compression nuts, ferrules, and O-rings in your toolbox for fast fixes. A 3/4 compression union or a coupler can be swapped in quickly when a section must be replaced.
| Issue | Reason | Remedy |
|---|---|---|
| Slow leak | Loose nut or bad ferrule | Hand-tighten, then wrench-turn to spec; re-seat tube and replace ferrule if needed |
| Immediate leak after installation | Damaged O-ring or ferrule, or tube not fully inserted | Check parts, re-cut, replace |
| Recurring leaks | Crushed ferrule or mismatch | Replace fitting or solder |
| Leak at union between two lines | Misaligned or bad torque | Realign tubing, check both 3/4 compression nuts, tighten to spec, pressure-test |
| Joint fails under pressure | Wrong fitting/material | Use certified coupler, test |
Buying Guide: Selecting The Right 3/4 Compression Fittings From Installation Parts Supply.com
Begin by examining the material and specifications. Select brass, plated, or copper, making sure they have good corrosion ratings. Check listings for pressure/temp specs. Also check to check if the product includes ferrules or spare O-rings. Understand the tightening procedure, whether by hand or wrench.
Select the style based on your project’s needs. A 3/4 union is ideal for joining two pipes of the same size. For straight connections, a 3/4 coupler is suitable. A 3/4 brass compression coupling is perfect for transitions or when aesthetics are a concern. Keep extra compression nuts and ferrules for fixes.
Make sure it fits 3/4″ OD tubes. Check compatibility with M, L, K, ACR pipes. For HVAC/R jobs, confirm compatibility with ACR and fluids.
Check the finish and quality of the parts. Premium options may offer colors or plating that resist tarnish and look better. Good seats and machined ferrules reduce leaks and ease install.
Before making a purchase, check stock and lead times. Installation Parts Supply.com usually stocks a wide range of 3/4 compression fittings and related tubing available. Be aware of shipping deadlines if same-day processing is required.
Review the warranty and return policies. Seek good coverage and a straightforward return window, like 30 days for new items. Keep receipts and order numbers handy to expedite any claims for bad parts.
Use the checklist below to simplify selection:
- Material/Corrosion specs
- Pressure/Temp limits
- Included ferrules, O-rings, and installation notes
- Tube compatibility
- Fitting type: Union, Coupler, or Brass Coupling
- Stock, Ship time, Warranty
Summary
Selecting a top-tier 3/4 copper compression fitting guarantees leak-free connections. These are essential for both home and commercial plumbing and HVAC systems. They are compatible with standard copper types. Thus you can select the right fitting for your project, guaranteeing life under normal conditions.
To achieve the best outcomes, ensure you know the tubing type and size. Prep and clean the ends of the tubes. Pick the right fitting that suits your needs. Following these rules and obeying instructions reduces leak risk and the need for additional work.
For reliable parts, turn to Installation Parts Supply.com. They offer dependable stock, certified copper, and good policies. By comparing product details, checking availability, and selecting premium 3/4 compression fittings, you get solid connections every time.
